Thông số kỹ thuật

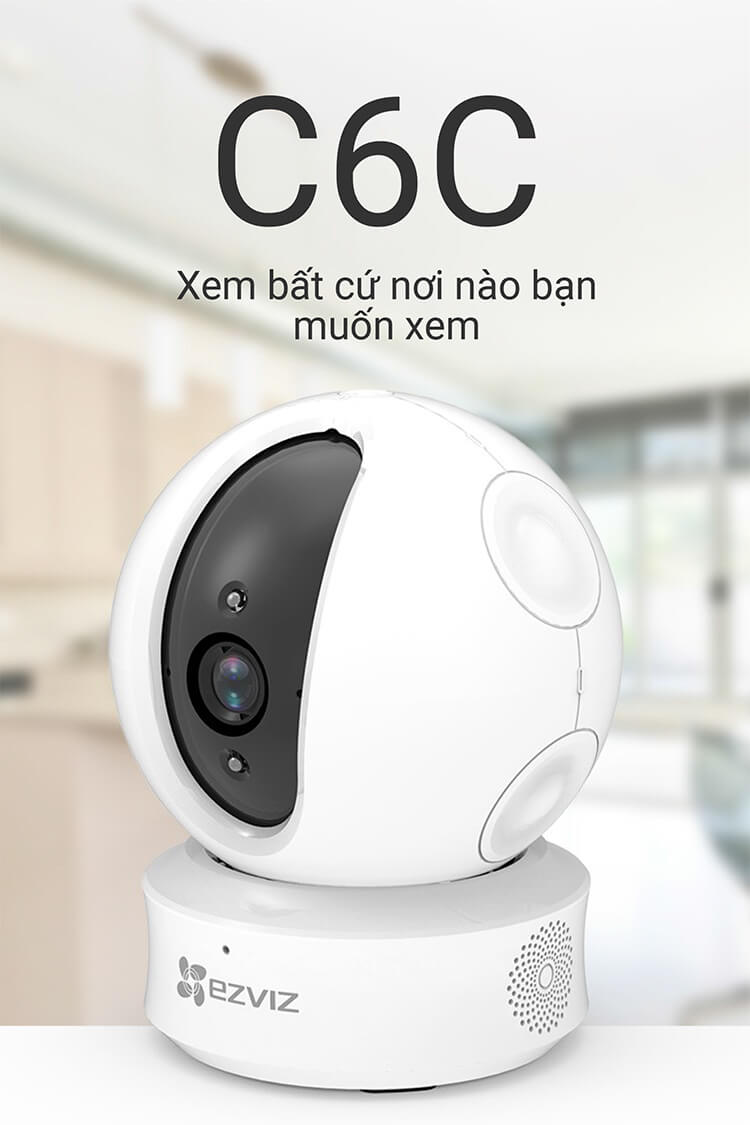

C6C

Xem bất cứ nơi nào bạn muốn xem

Model Parameters

ModelCS-CV246-B0-3B2WFRCS-CV246-B0-3B1WFR

Camera

Image Sensor1/2.7″ Progressive Scan CMOS1/4″ Progressive Scan CMOS
Shutter SpeedSelf-adaptive shutterSelf-adaptive shutter
Lens4mm@ F2.2, Diagonal angle: 90°4mm@ F2.2, Diagonal angle: 90°
PT AnglePan: 340°, Tilt: 120°Pan: 340°, Tilt: 120°
Lens MountM12M12
Day & NightIR-cut filter with auto-switchingIR-cut filter with auto-switching
DNR3D DNR3D DNR
WDRDigital WDRDigital WDR

Compression

Video CompressionH.264H.264
H.264 TypeMain profileMain profile
Video Bit RateHD, Balanced and Smooth bit rateHD, Balanced and Smooth bit rate


Max. Resolution1920×10801280×720
Image settingBrightness, contrast, saturation, etc. (configurable via EZVIZ Studio)Brightness, contrast, saturation, etc. (configurable via EZVIZ Studio)
BLCSupportSupport

Network

StorageSupport Micro SD card (Max. 256G)Support Micro SD card (Max. 256G)
Smart AlarmMotion detectionMotion detection
Wi-Fi PairingSmartConfig (Wi-Fi One-Key Configuration)/AP paringSmartConfig (Wi-Fi One-Key Configuration)/AP paring
ProtocolEZVIZ cloud proprietary protocolEZVIZ cloud proprietary protocol
Interface ProtocolEZVIZ cloud proprietary protocolEZVIZ cloud proprietary protocol
General FeaturesAnti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, WatermarkAnti-Flicker, Dual-Stream, Heartbeat Messages, Mirror Image, Password Protection, Watermark
Minimum Network Requirements2Mbps2Mbps

Wi-Fi

StandardIEEE802.11b, 802.11g, 802.11nIEEE802.11b, 802.11g, 802.11n
Frequency Range2.4 GHz ~ 2.4835 GHz2.4 GHz ~ 2.4835 GHz
Channel BandwidthSupports 20MHzSupports 20MHz
Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps11b: 11Mbps, 11g: 54Mbps, 11n: 135Mbps

General

Operating Conditions-10°C ~ 45°C, Humidity 95% or less (non-condensing)-10°C ~ 45°C, Humidity 95% or less (non-condensing)
Power SupplyDC 5V±10%DC 5V±10%
Power ConsumptionMax. 7WMax. 5.5W
IR RangeMax. 10 metersMax. 10 meters
Product Dimensions87.7mm x 87.7mm x 112.7mm87.7mm x 87.7mm x 112.7mm
Packaging Dimensions106mm x 106mm x 190mm106mm x 106mm x 190mm
Weight256g256g
